Flanges are essential components in piping systems, ensuring leak-proof connections that allow for the safe transportation of liquids and gases. A comparison between weld neck and slip-on flanges highlights their distinct features, each suited to particular applications.
Weld neck flanges are strong and long-term connections designed for high pressure systems with their secure butt-welded attachment, while slip-on flanges offer simpler installation and more cost-effective pricing, making them suitable for lower pressure applications that don't need as much strength.
What Are Weld Neck Flanges?
Weld neck flanges are engineered to provide robust and reliable connections in piping systems, especially those operating under high pressure, temperature, or fluctuating conditions. Their unique design features a tapered hub with an extended neck that gradually merges with the pipe, creating a smooth, seamless connection that minimizes turbulence and erosion at the joint.
The standout characteristic of weld neck flanges is their tapered hub, specifically designed to be welded to the pipe through full-penetration butt welding. This creates a strong, leak-resistant joint. The extended neck not only improves stability but also helps distribute stress evenly across the connection, which is crucial for high-stress pipe systems.
To ensure the integrity of these welds, tools like the Flange Weld Test Plug are incredibly useful. This hydro test plug allows operators to monitor upstream conditions, isolate and purge the weld area, and perform both the welding and hydrostatic tests of the joint with just one tool.
What Are Slip-On Flanges?
Slip-on flanges offer a more cost-effective and simpler alternative to weld neck flanges, making them ideal for low-pressure piping systems. As the name suggests, slip-on flanges are designed to slide directly over the pipe and are secured by two fillet welds—one on the inside and one on the outside—making installation easier and quicker compared to the more complex weld neck design.
These flanges are designed for easy fitting over pipes and can be welded in place without the need for the bulky hub and neck found in weld neck flanges. The two fillet welds secure them, but unlike full-penetration welds, they offer less structural strength and pressure resistance. This makes slip-on flanges a practical choice for less demanding applications.

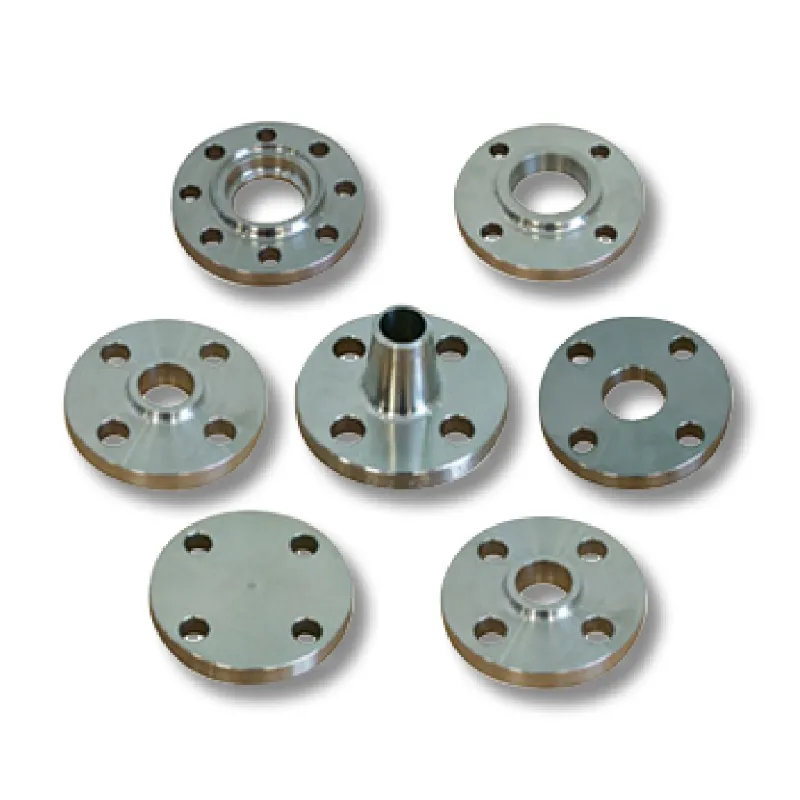

Compare Weld Neck vs Slip-On Flanges: Key Differences
Weld neck and slip-on flanges are two widely used types of pipe flanges, each designed to securely connect pipes while meeting specific pressure and temperature requirements. Their main differences lie in their design, installation methods, and ideal applications. Here's a breakdown of the key distinctions to help you choose the right one for your piping system:
1. Strength and Pressure Tolerance
Weld neck flanges are built for higher strength and pressure tolerance due to their solid hub and full-penetration weld. They are designed to withstand higher pressures and temperatures compared to slip-on flanges, which rely on simpler fillet welds. As a result, weld necks are better suited for high-stress, high-pressure applications, while slip-on flanges work best in low to medium pressure systems.
2. Welding Requirements
Weld neck flanges require a full-penetration butt weld, which ensures a strong, stress-absorbing joint. In contrast, slip-on flanges use two fillet welds (one inside and one outside), which are easier to apply but provide less structural integrity, making them less suitable for high-pressure applications.
3. Cost Considerations
Weld neck flanges are generally more expensive to install due to higher material costs and more complex welding requirements. However, they may offer better long-term value in high-stress applications. On the other hand, slip-on flanges are more affordable to install initially, but their lower strength could lead to higher maintenance costs down the line.
4. Installation Complexity
Weld neck flanges require more skill and time for proper installation, making them ideal for more critical piping systems. Slip-on flanges, however, are easier and quicker to install, making them a good option for low-pressure systems where strength is not as crucial.
In short: Weld neck flanges are perfect for high-stress environments where strength and pressure resistance are vital, while slip-on flanges offer a simpler, cost-effective solution for lower pressure systems.
Applications: When to Use Weld Neck Flanges vs Slip-On Flanges
Ideal Uses for Weld Neck Flanges
Weld neck flanges are the preferred choice for high-pressure systems and environments where durability is critical. They are commonly used in industries like petrochemical plants, high-temperature pipelines, and other essential infrastructures that operate under constant stress. The robust design of weld neck flanges makes them ideal for applications involving hazardous fluids, such as gasoline or high-pressure liquids, where long-term reliability and resistance to wear are crucial.
Ideal Environments for Slip-On Flanges
Slip-on flanges are best suited for low to medium-pressure applications, such as water distribution, HVAC systems, and certain chemical processing environments. Their simple installation process and lower initial cost make them a practical solution for situations where high durability and pressure resistance are not as critical.
Choosing the Right Flange for Your Needs – Weld Neck vs Slip-On Flanges
When selecting between weld neck and slip-on flanges, consider the following factors to ensure you choose the best option for your application:
Pressure Requirements
For systems that operate under high pressure and temperature conditions, weld neck flanges are the stronger option, designed to handle high-pressure and high-temperature environments. In contrast, slip-on flanges are better suited for low to medium-pressure systems.
Installation Requirements
If your team of welders has the expertise, weld neck flanges are an excellent choice. However, if simplicity and ease of installation are priorities, slip-on flanges are a more straightforward option that can save time during setup.
Budget Considerations
While weld neck flanges may have a higher initial cost due to material and installation complexity, they can help reduce maintenance expenses in demanding applications. Slip-on flanges are less expensive upfront but may lead to higher costs in inspection and maintenance over time.
Material Compatibility
Ensure the flange material is compatible with the fluids or gases in your system. Both weld neck and slip-on flanges are available in a variety of materials to meet the chemical and physical requirements of your specific application.
Conclusion
In conclusion, the key differences between weld neck and slip-on flanges are their design, strength, and suitability for specific applications. Weld neck flanges are built for high-pressure and high-temperature environments, offering exceptional strength and reliability. In contrast, slip-on flanges are designed for lower pressure applications and are better suited for systems with less demanding strength requirements.
Slip-on flanges are easier to install and more cost-effective, making them an ideal choice for low to medium-pressure systems where high durability and pressure resistance are not critical. Understanding these differences will help you choose the most appropriate flange type for your piping needs.
