Tube sheets are used to terminate the tubes within a heat exchanger, maintaining the design pressure and providing a flat, resealable surface for the removable headers. They are typically rectangular or circular, and with intermediate supports and fin materials, they help align the tubes within the heat exchanger.
What Is a Tube Sheet in a Heat Exchanger?

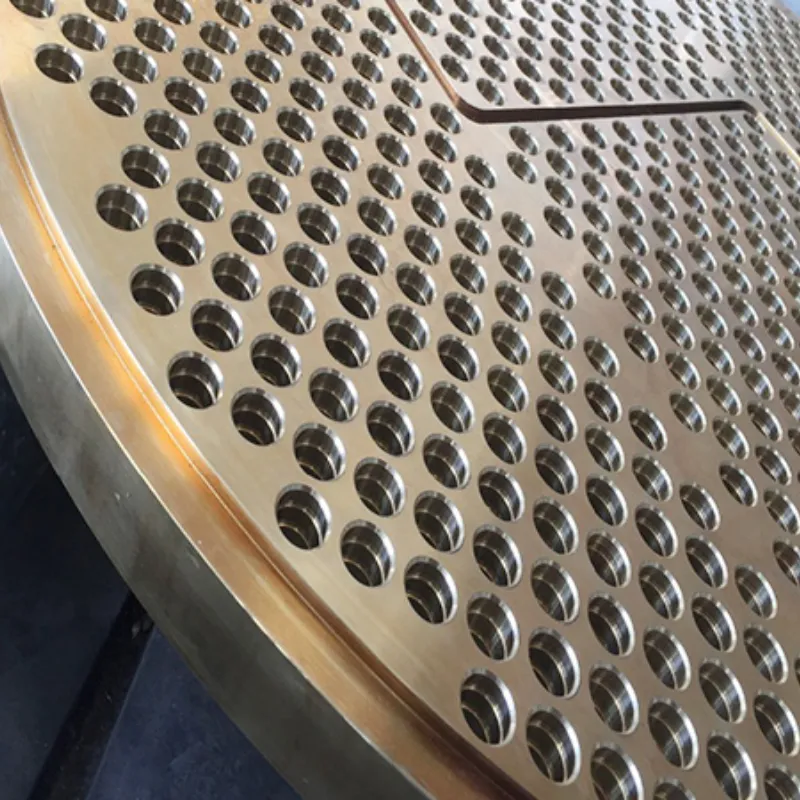

A tube sheet in a heat exchanger is a plate with holes drilled at specific positions, through which the tubes pass. It holds the tubes in place within the heat exchanger, ensuring effective heat transfer.
In shell and tube heat exchangers, two tube sheets support the tubes, one at each end. Fluid flows through the tubes, while a second fluid (coolant) circulates within the shell surrounding the tubes.

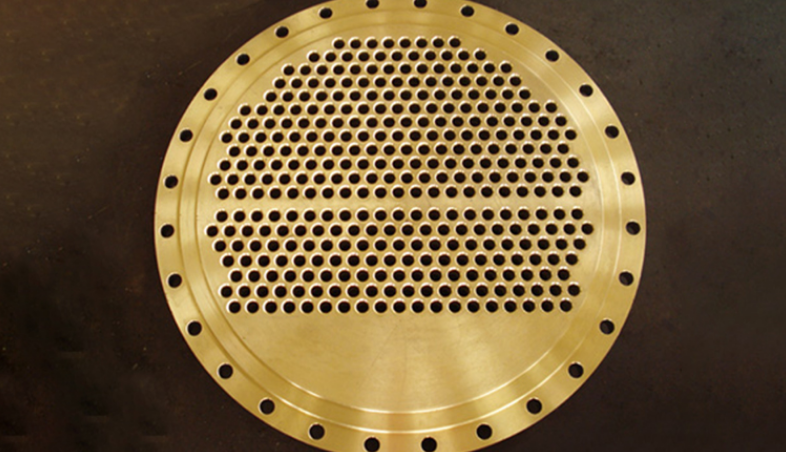

A tube sheet is typically made from a flat, round piece of plate or sheet metal, with holes drilled to precisely accept tubes or pipes in a specific pattern. Tube sheets support and isolate tubes in heat exchangers, boilers, and filter elements. Tubes are attached to the tube sheet using hydraulic pressure or roller expansion.
Tube sheets may be covered with a cladding material that serves as a corrosion barrier and insulator. Low carbon steel tube sheets can be coated with a higher alloy metal to improve corrosion resistance without the cost of using solid alloy, offering a cost-effective solution.
The most common application of tube sheets is in heat exchangers and boilers. These devices consist of numerous thin-walled tubes arranged inside a tubular shell. The tube ends are supported by tube sheets, which are drilled with predetermined patterns to allow the tubes to pass through. The tube ends are then expanded to secure them in place and form a seal.
The pattern of holes or "pitch" defines the distance between tubes and their angle relative to each other and the flow direction. This pattern influences fluid velocity, pressure drop, and turbulence, optimizing heat transfer by maximizing tube surface contact.
In situations where fluid intermixing must be avoided, a double tube sheetdesign can be used. This design features an outer tube sheet outside the shell circuit, preventing fluid mixing. The inner tube sheet is vented to atmosphere, making leaks easily detectable.
Designing tube sheets is a precise process; the number of tubes and hole patterns must be carefully calculated to distribute them evenly. Large exchangers may contain thousands of tubes arranged into specific groups or bundles. Today, tube sheet design and production are largely automated, with calculations done using CAD software and hole drilling performed on CNC machines.
SENLYON offers high-quality tube sheets with professional drilling equipment and a skilled team to meet your needs.
Tube Sheet Types
Heat exchanger engineers can design tube sheets in various ways to suit specific operational needs.
Fixed Tube Sheet Heat Exchangers
Fixed tube sheets are the standard design used when there are no extreme operating conditions. This type involves straight tubes fixed at both ends to the shell.
Double Tube Sheet Heat Exchangers
Double tube sheets are used when it's critical to prevent cross-contamination. They create a void between the two sheets where leaking substances can be collected, paired with a detector to raise an alarm. This design avoids contamination by keeping the tube-side and shell-side fluids separate.
Floating Tube Sheets
Floating tube sheets have one end fixed to the shell, while the other end floats freely. This design is ideal for operations with dynamic temperature changes, as it allows for expansion and contraction without causing stress or leaks. It also facilitates cleaning and inspection, particularly in systems that experience sediment build-up.
Applications of Floating Tube Sheets
Floating tube sheets are commonly used in heat exchangers, especially in industries that require adaptability to temperature changes or easier maintenance. They are particularly effective in preventing contamination and accommodating dynamic conditions.
