Brackets and tower bodies: external supports

Filler: Provides large heat transfer area for water and air

Cooling tank: located at the bottom of the cooling tower to receive cooling water

Water collector: Recovers water droplets carried away by the air stream

Air inlet: cooling tower air inlet

Water spraying device: spray cooling water

Fan: Supply air to the cooling tower

Axial fans are used for induced draft cooling towers.

Axial/centrifugal fans are used for forced ventilation cooling towers.

Cooling tower shutters: average intake air flow; Retain water in the tower.

It is widely used in the circulating water cooling process of petroleum, chemical, smelting, rubber, food, air conditioning, injection molding, pharmaceutical, brewing and other industries.

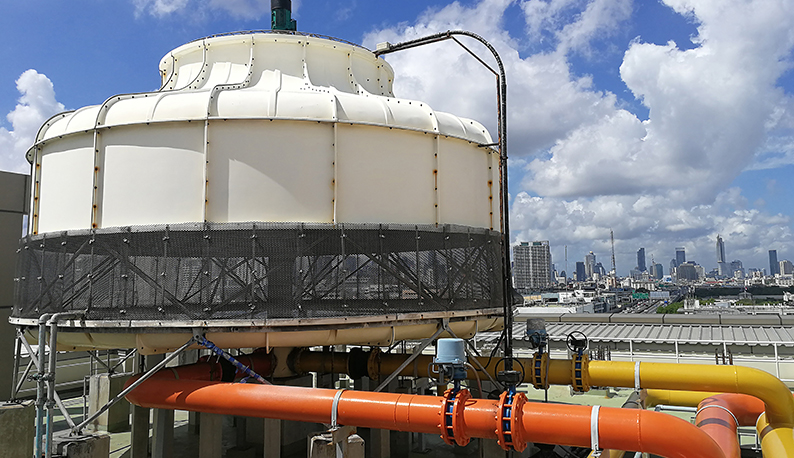

Circular counter-flow cooling towers use counter-flow gas heat exchange technology to achieve cooling effect. The cooling tower adopts anti-corrosion design, no wearing parts, very low repair rate, and the design service life is 30 years. The main body is made of glass fiber reinforced plastic structure, the tower body has no corrosive parts, and the steel structure parts are made of national standard material, and hot-dip galvanized and anti-corrosion. The filler is made of a new modified PVC material, and the structure is an oblique fold filler to diffuse the water area, and the water distribution method is carried out evenly through the rotary atomization water distribution method to achieve uniform water distribution and enhance the cooling effect.

The square counter-flow cooling tower adopts counter-flow gas heat exchange technology, so that the cold air enters the air from the bottom of the cooling tower and enters the packing layer against the current, so as to realize heat exchange with heat. The main body adopts all-steel structure, FRP guard, and the tower body is equipped with maintenance escalators for the normal maintenance and management of the equipment at the top of the tower. S corrugated filler, modified PVC material, and specially constructed flowing water film to diffuse the water area; Through the sprinkler pipe and sprinkler splash water distribution method, the water distribution is uniform, the heat dissipation is increased, and the cooling effect is enhanced.

Introduction to cross-flow FRP cooling tower this series of cross-flow FRP cooling tower adopts air intake on both sides, relying on the fan at the top, so that the air can be exchanged with hot water through the packing on both sides of the tower, and the hot and humid air is discharged to the outside of the tower. The filler adopts dot wave plates with bumps on both sides, and the dot wave sheets are bonded into a whole through the mounting head to improve rigidity, and the bumps on both sides can also avoid direct dripping, so the ability to form a water film is improved, and the tail of the filler is equipped with water collection measures
